Maro97 Posted May 11, 2024 Share Posted May 11, 2024 i wonder why the KBC/EC Firmware Revision is N/A what this mean ? and what this firmware responsibility (KBC/EC) ? Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Does the laptop behaves normal in its operation? Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 yes everything works fine except the keyboard lighting , the colors when changed are different from what i choose .... my ec frimware is EC10710 but i dont know why it not showen in bios ? Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Does the keyboard has any physical damage to the rgb ribbon cable? If not, it could be that the secondary EC is corrupted. You could reflash the EC but ONLY if you know what you are doing. An EC brick means a mobo brick so only reflash as a last resort. Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 i flashed it to EC10710 but not apppers into BIOS by FLASHTM meathod , and i wonder is that the last EC Frimware for clevo p870tm ? Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 I flashed it without laptop battery shall i flash it againe with laptop battery installed or not ? Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Should be flashed with battery in. The collors of the keyboard are controled by the second EC not the primary one. Also you have an older dsanke bios moded by a russian moder from 4pda forum. Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 what is your idea to fix this ? Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Reflash both EC and revert to last version stock bios. After that you can reflash the lastest unlocked TM bios (but please flash the bios with a programmer not by ftp). Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 you said Reflash both EC and revert to last version stock bios , with spi programmer or by stock methods ? Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 and i have P870TM-0716-9900KS-128G bios can i use it with 8700k & 32gb ram & gtx 1070 ? Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Flash both EC trough stock method. Flash stock bios by stock method/SPI. Flash dsanke (or any custom bios) only by SPI. Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
runix18 Posted May 11, 2024 Share Posted May 11, 2024 Just now, Maro97 said: and i have P870TM-0716-9900KS-128G bios can i use it with 8700k & 32gb ram & gtx 1070 ? Yes you can. Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 11, 2024 Author Share Posted May 11, 2024 how many EC must flash ? to my knowledge flashtm method and fpt bios only those can be flash it , right ? Link to comment Share on other sites More sharing options...

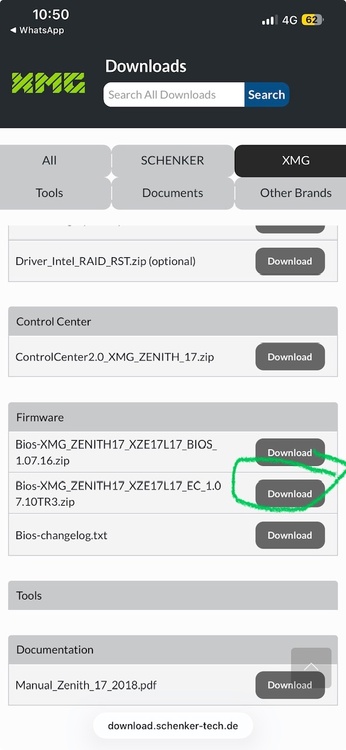

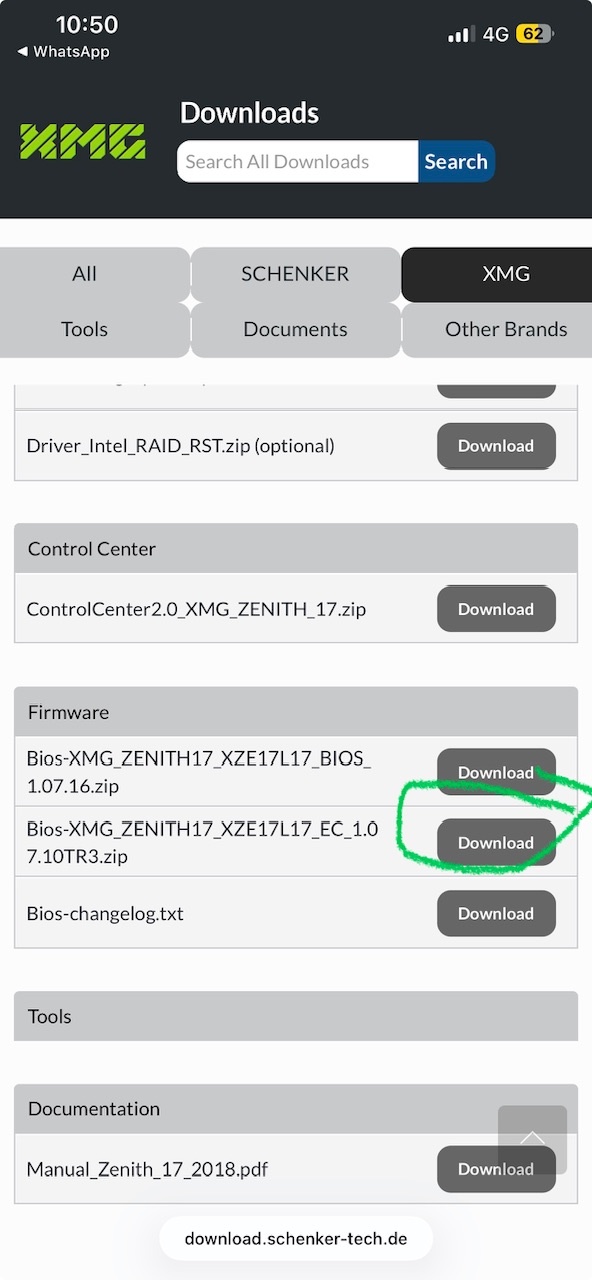

runix18 Posted May 11, 2024 Share Posted May 11, 2024 In the video you posted there are 2 EC. one primary 1.07.10 (but from what i know 1.07.09 is the last stock EC) and 2nd EC 1.05.03. Desktop - MSI X670E Tomahawk Wifi (cheap Ebay mobo that I fixed) | AMD 7800X3D | 32 GB Trident Z5 Neo RGB 6000Mhz | MSI RTX 4070TI Suprim X | Alienware 27 AW2724DM 2K 165 Hz Gsync | Samsung 990 Pro Nvme - Boot | Other various storage | Windows 10 Pro x64 SOLD - Clevo P870DM-G | i9-9700K 4.5 Ghz on all cores (-50 mv undervolted) | 32GB Hyper X Black 2666MHz | Clevo RTX 2080 3.1b undervolted for better temp 1905Mhz @881 mv | AUO B173HAN03.1 144hz Gsync | Samsung 980 NVME | Dsanke TM BIOS - Chujoi13 adapted based on needs | Network Card: Intel AX210-AX | Windows 10 Pro x64 Link to comment Share on other sites More sharing options...
Maro97 Posted May 12, 2024 Author Share Posted May 12, 2024 Thanks runix18 for helping me to solve my issue the KBC / EC frimware version appers in bios i flashed latest dsnake bios by FPT method without to flash stock bios appreciate 1 Link to comment Share on other sites More sharing options...
Maro97 Posted May 13, 2024 Author Share Posted May 13, 2024 Link to comment Share on other sites More sharing options...
Developer79 Posted May 15, 2024 Share Posted May 15, 2024 On 5/11/2024 at 11:53 PM, runix18 said: In the video you posted there are 2 EC. one primary 1.07.10 (but from what i know 1.07.09 is the last stock EC) and 2nd EC 1.05.03. This is right! Normally 1.07.09 latest offziel Version EC!..... Link to comment Share on other sites More sharing options...
Maro97 Posted May 15, 2024 Author Share Posted May 15, 2024 thanks developer79 appreciate Link to comment Share on other sites More sharing options...
