incendery Posted August 14 Share Posted August 14 I have successfully modified the shunt resistors on a clevo 3080 card out of an x170km, I installed 20mohm resistors on top of the existing 5mohm for somewhere in the neighbourhood of a 4mohm result (in theory a 20% increase in headroom" due to lacking dynamic boost support in my p775dm3 I was stuck at the 150w limit, it should now be around 180w! I am temperature limited now but will update with performance once my ptm7950 arrives! 3dmark timespy result: 13801 GPU score https://www.3dmark.com/3dm/115871921 My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
incendery Posted August 14 Author Share Posted August 14 with a little undervolting I am quite happy with this score despite being on the raw edge of throttling, holding at 1800mhz core through the whole bench 1 My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
ryan Posted August 14 Share Posted August 14 impressive. great scores also. I was wondering what your firestrike score was. do you game? if so do you game at 1080p>? should be good for a few more years at 1080p/1440p ZEUS-COMING SOON Omen 16 2021 Zenbook 14 oled Vivobook 15x oled Link to comment Share on other sites More sharing options...
incendery Posted August 15 Author Share Posted August 15 12 hours ago, ryan said: impressive. great scores also. I was wondering what your firestrike score was. do you game? if so do you game at 1080p>? should be good for a few more years at 1080p/1440p Firetrike score was 35631 GPU after PTM installation, I'm able to hold around steady boost at 1890mhz under firestrike load while under 60c! http://www.3dmark.com/3dm/115925832?key=akYYmlKjjF6uLFjhIQNyfA I do a fair bit of gaming at 1080p on my desktop, I'm moving countries in the next month so this laptop will become my main machine very soon. Should tide me over for a year or so until I rebuild a desktop :) My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
incendery Posted August 15 Author Share Posted August 15 The benchmarking is getting quite addictive now 😄 maximum GPU temperature of 72c even with the shunt mod and in theory near constant 170-180w power draw during the bench, I am interested in getting access to the i2c bus for the GPU to see what my real power draw is. Not quite stable, getting some artifacting on the screen with this run so I will have to up the voltage a little bit, but valid score regardless. Very impressed with PTM7950 1 My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
incendery Posted August 18 Author Share Posted August 18 (edited) hmmm I need to redo my changes to boardID in the bios, inadvertently changed the subsystem ID for the audio device and now my headphones don't work 😂 shunt mod is still working very smoothly, I will push the memory a little now and see what scores I can hit (update) fixed! had one of the wrong values in the boardID file changed, it now works correctly and smoothly Edited August 18 by incendery update on previous info My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
cdoublejj Posted September 3 Share Posted September 3 holy hell MXM still exists!? a 3080 no less!!! 1 Link to comment Share on other sites More sharing options...
incendery Posted September 4 Author Share Posted September 4 7 hours ago, cdoublejj said: holy hell MXM still exists!? a 3080 no less!!! MXM is quite dead in the consumer space unfortunately 😞 this is a card from the last true DTR clevo with socketed CPU and GPU (X170KM) My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
saturnotaku Posted September 11 Share Posted September 11 There apparently exists an MXM version of the RTX 4060. Fast forward to about the 10:45 mark of this video to see it: 1 Desktop: Ryzen 5 5600X3D | 32 GB RAM | GeForce RTX 4070 Super | 4 TB SSD | Windows 11 Gigabyte Aorus 16X: Core i7-14650HX | 32 GB RAM | GeForce RTX 4070 | 2 TB SSD | Windows 11 Lenovo IdeaPad 3 Gaming: Ryzen 7 6800H | 16 GB RAM | GeForce RTX 3050 | 512 GB SSD | Windows 11 Lenovo IdeaPad 5 Pro: Ryzen 5 5600U | 16 GB RAM | Radeon Graphics | 512 GB SSD | Windows 11 Link to comment Share on other sites More sharing options...
incendery Posted September 12 Author Share Posted September 12 21 hours ago, saturnotaku said: There apparently exists an MXM version of the RTX 4060. Fast forward to about the 10:45 mark of this video to see it: intruiging, thanks for sharing! My Clevo P775dm3 8700k @4.7 3080mxm (180w) 32gb cl18 Link to comment Share on other sites More sharing options...
nforce4max Posted September 12 Share Posted September 12 On 9/11/2024 at 9:06 AM, saturnotaku said: There apparently exists an MXM version of the RTX 4060. Fast forward to about the 10:45 mark of this video to see it: I want that mxm lol, would make a nice upgrade for the Precision 7510/20 for example though probably too much for the M4800 unless someone makes a custom heatsink. Link to comment Share on other sites More sharing options...
cdoublejj Posted September 14 Share Posted September 14 On 9/4/2024 at 1:53 AM, incendery said: MXM is quite dead in the consumer space unfortunately 😞 this is a card from the last true DTR clevo with socketed CPU and GPU (X170KM) ssaaaaaayyyyy whaaaaaatt!? a socket laptop in 2020s? Quote Link to comment Share on other sites More sharing options...
cdoublejj Posted September 14 Share Posted September 14 On 9/11/2024 at 9:06 AM, saturnotaku said: There apparently exists an MXM version of the RTX 4060. Fast forward to about the 10:45 mark of this video to see it: Jaw dropping Link to comment Share on other sites More sharing options...
Ralph Posted October 11 Share Posted October 11 180w on mxm card is crazy 😅 even 150w was high but 180w is extreme high 🙃 I know that your temps are low but this will damage your card ( maybe mosfets ) 🤔 I suggest not to go higher than 165W limit. This card is expensive, no point in killing it for few extra fps 😎 1 Link to comment Share on other sites More sharing options...

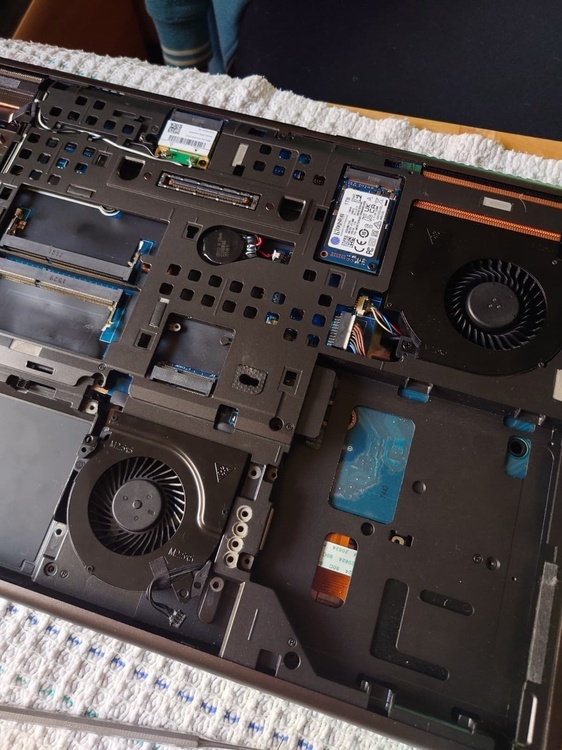

cdoublejj Posted October 16 Share Posted October 16 i planned on doubling my heat sink size/capacity but, the extra sink ends up being passively cooled, unless i find a way to add more fans. Link to comment Share on other sites More sharing options...
Meaker Posted November 9 Share Posted November 9 https://www.3dmark.com/spy/47636486 My max was 1900-1950Mhz before voltage was the main limiting factor, the GPU core was at 60-65C. 1 1 Louqe Ghost S1 case (Top hat and bottom extension) Nvidia RTX 4070 MSI twin fan 32" MSI 4k 160HZ IPS display AMD Ryzen 7 7700 cooled via Thermalright 240mm AIO 48GB (2x24) DDR5 6000 CL36 Asus B650E-I motherboard 2TB T500 nvme SSD + 2TB SN770 nvme 500W Silverstone SFX-L PSU Link to comment Share on other sites More sharing options...
