💻 How to Enable Above 4G Decoding on Alienware Area-51M R1





What does Above 4G Decoding do?





When this option is enabled:



The system uses 64-bit address space for PCIe devices.



This allows hardware resources to be mapped into a much larger memory space (above the 4GB limit).



As a result, the legacy addressing limitation is removed.



⸻



🚀 Practical Benefits



1️⃣ Essential for Modern Graphics Cards



Modern RTX and newer GPUs:



• Have large VRAM capacity
• Use large BAR (Base Address Registers)





If Above 4G is disabled:



• The GPU may not initialize properly
• Driver errors can occur
• System stability and performance may suffer





⸻



2️⃣ Critical for eGPU Setups



For external GPUs (Thunderbolt / AGA):



With Above 4G enabled:



• GPU detection becomes more stable
• Prevents PCIe address space exhaustion
• Reduces boot and initialization issues





⸻



3️⃣ Better Stability for Multi-PCIe Systems



Systems that use:



• Internal + external GPU
• Multiple NVMe SSDs
• Capture cards
• PCIe expansion cards





All benefit from the larger PCIe memory address space.



🧩 System Context





• Laptop: Alienware Area-51M R1
• CPU: Desktop i9-9900K
• eGPU Dock: Alienware Graphics Amplifier
• External GPU: RTX 3080 Ti





If you’re running an eGPU or modern high-VRAM graphics card, enabling Above 4G Decoding is strongly recommended.









🎯 What We’re Doing





We’re enabling 64-bit PCIe memory mapping so the system can:



• Properly allocate MMIO space for large GPUs
• Prevent PCIe resource exhaustion
• Improve eGPU detection reliability
• Avoid Code 12 / Code 43 errors
• Prepare the system for Resizable BAR (if BIOS-modded)











🧰 Requirements





• RU.EFI utility
• Access to hidden BIOS variables (via IFR/RU)











🪜 Step-by-Step Guide







1️⃣ Boot into RU.EFI





• Plug in your EFI boot USB
• Enter Boot Menu → launch EFI Shell
• Run:



RU.EFI









2️⃣ Open BIOS Variable Store





Inside RU:



Press:

Alt + =

Select:

Setup

Then open:

VarStore: 0x1









3️⃣ Go to the Variable Offset





From IFR, the setting :

Above 4G Decoding

VarOffset = 0xA2B

In RU:



Press:

Ctrl + G

Enter:

A2B









4️⃣ Change the Value



Value	Meaning
00	Disabled
01	Enabled ✅

Set the value to:

01





5️⃣ Save Changes





Press:

Ctrl + W

Confirm the save prompt.



6️⃣ Reboot





Restart the system and boot into Windows.









✅ How to Verify It Worked







Method 1 — Device Manager





If there are no:



• Code 12 errors
• Code 43 errors





Then PCIe resources are properly allocated.

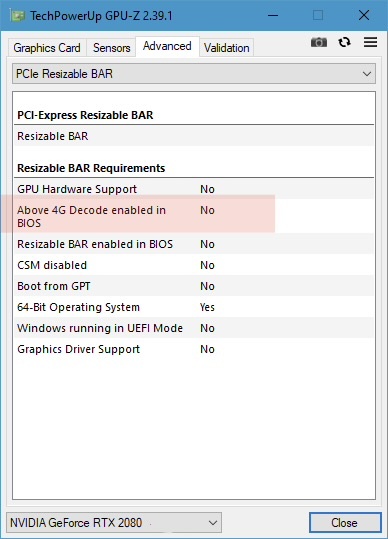

Method 2 — GPU-Z





Bus Interface should be stable under load with no detection drops.









Method 3 — Event Viewer





No PCI resource allocation warnings = success.









⚠️ Notes





• If Windows fails to boot, revert value back to 00
• For eGPU setups, this should almost always be Enabled
• Systems with iGPU + dGPU + eGPU heavily benefit from expanded MMIO











🧠 Why It Matters for This System





With:



• External GPU over AGA
• High-power RTX card
• Multiple PCIe devices / NVMe drives





Enabling Above 4G Decoding improves:



Stability • GPU detection • Resource allocation reliability
