MiRaGe Posted September 24, 2023 Author Share Posted September 24, 2023 Sorry, not familiar with 2060... XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
FTW_260 Posted September 24, 2023 Share Posted September 24, 2023 9 hours ago, razor0601 said: higher TDP for RTX 2060 I did a shunt mod for mxm 2060, it was great) TongFang GM6PX8X | 13900HX | 32Gb@6600Mhz C40 | RTX4080 | QHD @240Hz | PM9A1 1Tb | PREMA MOD | Custom 360mm AIO Liquid System | Link to comment Share on other sites More sharing options...
zex4 Posted September 24, 2023 Share Posted September 24, 2023 Do you have pics ? Would be very interesting to see...the only thing that I did back then was with pascal bios tweaker but without any success.... Link to comment Share on other sites More sharing options...

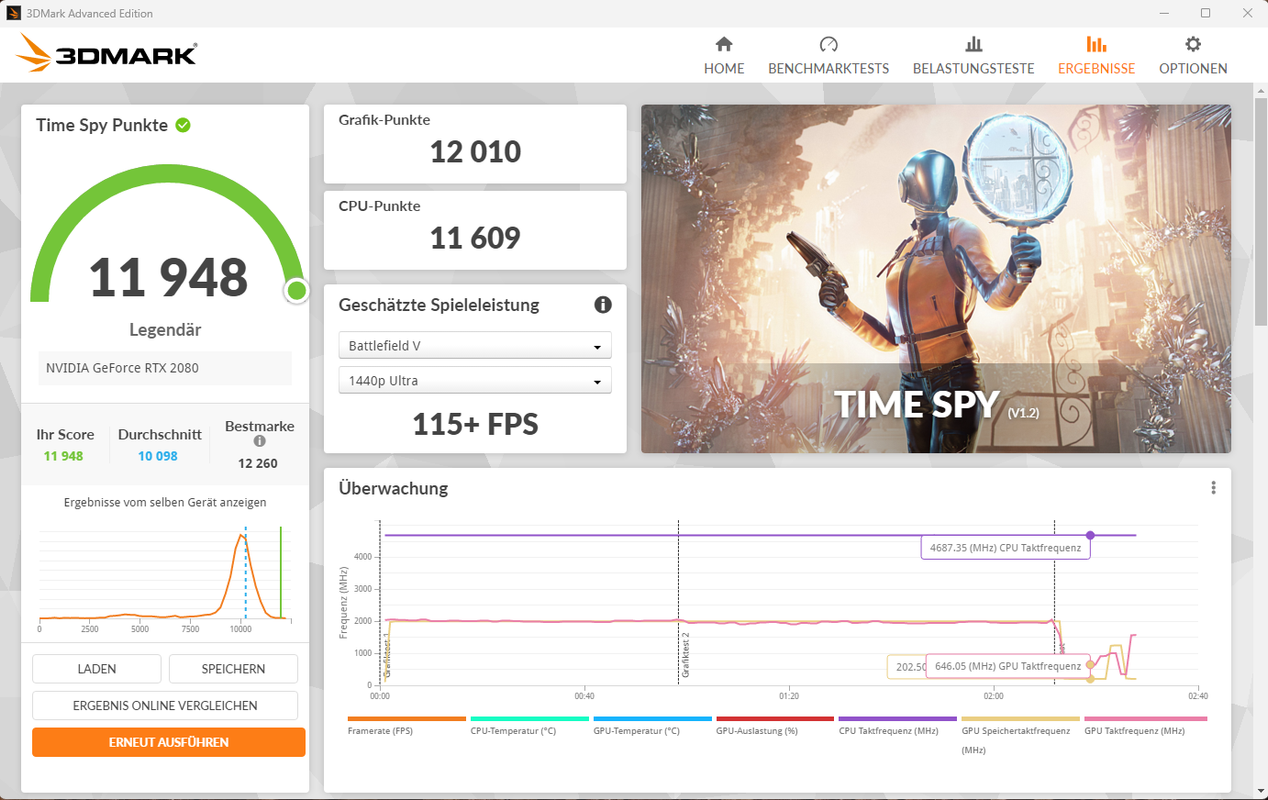

Csupati Posted September 24, 2023 Share Posted September 24, 2023 On 9/17/2023 at 7:49 AM, MiRaGe said: Finally! 12K Graphics! RTX 2080 200W +160 Core +250 Mem. Nice job! Im getting 10k with stock bios and no OC at 165W consume . Desktop 3060ti is the same gpu score with Alienware Graphics Amplifier ( Pcie X8 3.0) and 6700HQ cpu in a 13 R3 . Thinking about going back 😕 (sadly) HP Omen Transcend 16 13700HX/32GB 4800mhz/RTX 4070 105W/QHD 240Hz IPS. Link to comment Share on other sites More sharing options...
FTW_260 Posted September 24, 2023 Share Posted September 24, 2023 1 hour ago, zex4 said: Do you have pics ? Sure, just add mgtf wire around rs1 and rs2 resistors on back side of the PCB: TongFang GM6PX8X | 13900HX | 32Gb@6600Mhz C40 | RTX4080 | QHD @240Hz | PM9A1 1Tb | PREMA MOD | Custom 360mm AIO Liquid System | Link to comment Share on other sites More sharing options...
zex4 Posted September 24, 2023 Share Posted September 24, 2023 First what means mgtf wire ? And how much tdp you got after the shunt mod ? Ty so much for the pic and info bdw 😇 Link to comment Share on other sites More sharing options...
zex4 Posted September 24, 2023 Share Posted September 24, 2023 I just hope that shunt mod makes 2060 faster than the 1080 as example.... Link to comment Share on other sites More sharing options...
FTW_260 Posted September 25, 2023 Share Posted September 25, 2023 17 hours ago, zex4 said: First what means mgtf wire ? And how much tdp you got after the shunt mod ? It is necessary to reduce the resistance on these resistors. In my case this was done by soldering a thin wire. (mgtf) The TDP approximately doubles, the adjustment is made by adjusting the curve in the MSI AB. TongFang GM6PX8X | 13900HX | 32Gb@6600Mhz C40 | RTX4080 | QHD @240Hz | PM9A1 1Tb | PREMA MOD | Custom 360mm AIO Liquid System | Link to comment Share on other sites More sharing options...
zex4 Posted September 28, 2023 Share Posted September 28, 2023 This is how my 2060 looks like..wanted to show it before I do the shunt mod...it was the quality sample i got from clevo directly But it seems you added some capacitors on empty spots... Hope I don't need to do that aswell...I will not overclock anyways... Link to comment Share on other sites More sharing options...
FTW_260 Posted September 28, 2023 Share Posted September 28, 2023 @zex4 RS1 and RS2 in the second picture are what you need. There is no need to make this modification if you are not sure that you will do everything correctly. After hardware changes, you need to correctly configure the card consumption (voltage curve) in the MSI AB. TongFang GM6PX8X | 13900HX | 32Gb@6600Mhz C40 | RTX4080 | QHD @240Hz | PM9A1 1Tb | PREMA MOD | Custom 360mm AIO Liquid System | Link to comment Share on other sites More sharing options...
zex4 Posted September 28, 2023 Share Posted September 28, 2023 Thanks buddy can you send me a screen from msi ab 😉 Link to comment Share on other sites More sharing options...
FTW_260 Posted September 28, 2023 Share Posted September 28, 2023 This makes no sense, the curve in MSI AB is unique for each card. TongFang GM6PX8X | 13900HX | 32Gb@6600Mhz C40 | RTX4080 | QHD @240Hz | PM9A1 1Tb | PREMA MOD | Custom 360mm AIO Liquid System | Link to comment Share on other sites More sharing options...
MiRaGe Posted October 13, 2023 Author Share Posted October 13, 2023 Finally a proper copper shim mod. Took me awhile but at the end it worked out pretty well. 1 XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
Csupati Posted October 13, 2023 Share Posted October 13, 2023 7 minutes ago, MiRaGe said: Finally a proper copper shim mod. Took me awhile but at the end it worked out pretty well. As i see you are using LM on cpu, how did you isolated the heatsink? And how much isolation is on the gpu chip from the sides? Usually we dont LM gpu-s cuz if its not contacting with the heatsink you can overheat the sides of the gpu , and kill it. HP Omen Transcend 16 13700HX/32GB 4800mhz/RTX 4070 105W/QHD 240Hz IPS. Link to comment Share on other sites More sharing options...
MiRaGe Posted October 13, 2023 Author Share Posted October 13, 2023 LM, when applied correctly tends to stay in place. No need for isolations etc. Besides, I use custom heatsink and the contact area fits perfectly on the cpu and gpu. I had foam dam before, but took it off. XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
MiRaGe Posted October 14, 2023 Author Share Posted October 14, 2023 1 XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
MiRaGe Posted November 4, 2023 Author Share Posted November 4, 2023 deleted XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
1610ftw Posted November 11, 2023 Share Posted November 11, 2023 On 4/9/2023 at 9:49 AM, FTW_260 said: Yesterday I accidentally found this cool custom heat sink for the good old p775 on taobao . It has two integrated vapor chambers for the CPU and GPU, as well as larger grill areas where the fans are installed. (it seems that the rear decorative panel on the case needs to be removed to install this monster) It looks massive, heavy, and powerful. There is also the option of separate gpu and cpu heatsink, also with vapor chambers. The price is about 150 dollars. Pretty sure it can handle 400W+ heat with custom fans. I was intrigued by this heatsink and I dug up some more info about this as the seller is quite interesting. He claims that this version is good for about 165W of heat dissipation for the CPU with no real world limit to the GPU. There are a few funny things coming out of the translator like that this is a heatsink that is only suited for freaks with strong hands but there is also a lot of useful info and I managed to dig up a document with a number of pics, here is the monster heatsink mounted in the P775: And here is the new butt Alienware-style, looks like it has to be riveted to the old bottom cover: mounted, probably around 2.5 to 3cm deeper: Looks as if one would need a flashlight to find the connectors on the back :D He also has some special fans that he highly recommends for the bigger heatsink as throughput from the shoddy stock fans won't be enough: There is also a less extreme heatsink that would fit in the existing case and from what it looks like without any cutting but he could also make the heatpipes all go through which I think would be preferable if one often has CPU-heavy workloads: Feeling a bit tempted now to get one of those heatsinks and a pair of those fans 😄 1 Link to comment Share on other sites More sharing options...
MiRaGe Posted November 11, 2023 Author Share Posted November 11, 2023 If you decide to order it, let’s make a combined order as we both are located in Germany😊 I am interested in this too👍🏻 1 XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
1610ftw Posted November 11, 2023 Share Posted November 11, 2023 4 hours ago, MiRaGe said: If you decide to order it, let’s make a combined order as we both are located in Germany😊 I am interested in this too👍🏻 Will let you know but it is indeed a bit tricky to contact that guy as he is only on taobao 🙂 Link to comment Share on other sites More sharing options...
MiRaGe Posted November 11, 2023 Author Share Posted November 11, 2023 7 minutes ago, 1610ftw said: Will let you know but it is indeed a bit tricky to contact that guy as he is only on taobao 🙂 PMd you:) XMG Neo 17 (E24) | 14900HX | 32GB 5600 CL48@7000 CL34 | RTX4090 | QHD @240Hz G-Sync | 2TB Samsung 990 PRO | Killer WiFi 1675i Link to comment Share on other sites More sharing options...
1610ftw Posted November 11, 2023 Share Posted November 11, 2023 28 minutes ago, MiRaGe said: PMd you:) PM answered 👍 Link to comment Share on other sites More sharing options...
razor0601 Posted November 11, 2023 Share Posted November 11, 2023 Some more dudes from Germany? Crazy 😜 1 Schenker DTR 15(P751TM1) @Dsanke Bios, I7-8700, 32GB 2666MHz RAM, GTX 1060, 15,6“ 4K B156ZAN02.2 Display Link to comment Share on other sites More sharing options...
