Starting this topic to discuss their effectiveness and or review laptop cooling bases/blowers/extractors/etc.

Some claim that these products are snake oil, others swear that these devices shaved off a couple of degrees, while others acknowledge that they might help a little but mostly you get the false impression of lower temps because the fans blow directly over the temperature sensors on your laptop mobo.

what do you think, do they work?

I'll start with the one I've been using since 2019

Coolermaster Ergostand III


To be completely honest I noticed that it helps lower the max temps on my Omen 15 2019 by around 2-4 degrees, but still under certain conditions, like playing Cyberbug 2077 which squeezes as much CPU and GPU power, there was no real difference between having it on or off. The laptop would melt anyway.

The good:

  • The front plate can be removed, that allows to easily clean any dust that gets in the mesh
  • The mesh itself catches quite a lot of dust, the bigger dust bunnies, the only thing that passes through is that kind of really fine dust that sticks like a coating - just yesterday was cleaning the fans of my laptop and noticed only this kind of sticky grime and nothing else clogging the fans or exhausts
  • The 6 positions allow me to have the screen of my laptop comfortably in front of my eyes

The bad:

The little PCB that controls the fan speed died after a year and a half of use, first the white LED started flickering, then the speed knob, in the end I had to bypass it all and connect the cooler directly (it has a dedicated 5v USB port for the fan, besides the USB hub for data and energy) to an external charger.





Link to comment
Share on other sites

I've been using this dingaling for a few days and it seems to keep temps moderated under load and reduce fan noise on top of it; no complaints.

Also, like two minutes ago, I just found out this thing has a freaking phone stand. Well, that'll be useful for Twitch. I'm actually amused.

  • Thumb Up 2

Kirisame: Custom build

       Ryzen 7 5800X

       32GB HyperX DDR4-3733 CL18

       ASRock Phantom D OC RX 6800XT

       1TB Samsung OEM gen4

       2TB Inland Platinum

       2TB Seagate Barracuda HDD

Huawei Matebook D14

i5-10210U
8GB DDR4
500GB NVME
Link to comment
Share on other sites

In my opinion, a lot of the time they just help with some extra airflow under the laptop but a couple of post-it pads will do the same thing. Unless you remove the bottom panel of the laptop then you're never really going to get the full potential of a fan(s) blowing air up from underneath. If you're getting a 2-4 deg reduction then it is still better than nothing.

Most laptops also have their heatsink exhaust fans trying to push the hot air out the bottom of the chassis and most laptop coolers are trying to push air into these same vents. It seems counterproductive. Having the cooler set up as an exhaust almost seems like a better option.

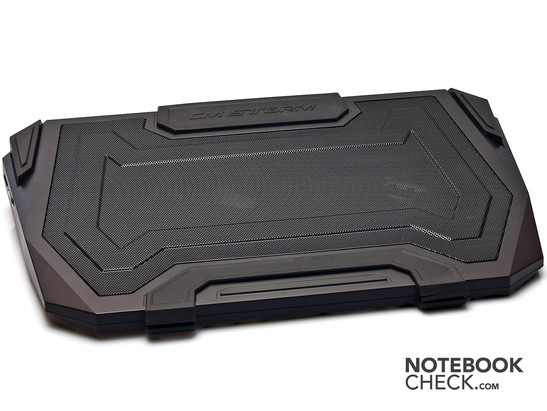

Saying this, I still have my Coolermaster SF-19 V2 under my M18x as it was the only one big enough for the 18" laptop. The exhaust fans push the air out of grill at the rear of the chassis rather than down so that probably helps. I've never done any thermal testing in the 10 years of owning the laptop though. The laptop sits up on the rubber pieces so it gives a few extra mm of clearance for airflow.

Left: On/off button for the light, button for changing the lights' color, wheel for fan velocity.Right: 4 USB 3.0, laptop connection, power socketcsm_-Bearbeitet_01_a5519d1fb4.jpg

  • Bump 1

Alienware M18x R2 - i7-3920XM - GTX 970M - 16GB 1866Mhz DDR3L - Samsung 970 Evo with MXM to NVMe Adapter - Custom Delft Blue

Alienware M18x R2 - i7-3840QM - GTX 680M - 16GB 1600Mhz - Custom Yellow     Alienware M17x R3 - i7-2760QM - GTX 580M - 16GB 1600Mhz DDR3

Alienware M17x R2 - i7-720MQ - GTX 460M - 8GB 1600Mhz DDR3 - 1920x1200 RGBLED   Alienware X51 - i7-3770 - NO GPU - 16GB 1600Mhz DDR3

Alienware Area 51 ALX - i7-975 Extreme - GTX 980 - 16GB 1600Mhz DDR3   Alienware Aurora R2 - i7-3770K - GTX 670FTW - 16GB 1600Mhz DDR3

Alienware Aurora R4 ALX - i7-3930K - GTX 1060 - 16GB 1600Mhz DDR3        Alienware Aurora R4 ALX - i7-3930K - GTX 670FTW - 16GB 1600Mhz DDR3



Link to comment
Share on other sites

I've been using the Cooler Master NotePal U3 PLUS for 5+ years now. It fits every laptop even up to the P870 and Alienware 18. I like the adjustable fans and it is fairly light weight.


  • Thumb Up 2

Electrosoft Prime: 12900k | Asus Z690 Strix D4 | MSI Suprim X Liquid 4090 | AC LF II 420mm AIO | G.Skill 4133 2x16GB B-Die G1 | Samsung 980 1TB | EVGA 1600w P2 | Phanteks Ethroo Pro | LG 49" 144hz IPS
Heath: i3-12100f | Asrock B660M Pro RS | Intel A770 LE  | 32GB Klex 3600mhz  | WD Black SN850 512GB |  EVGA DG-77 | HP ZR30w 30" 2560x1600 IPS

MelMel: i5-12500 | Asus Prime B660 | Asrock Intel A380 | 16GB G.Skill 3600mhz |  512GB M.2 | Gamdias | Dell 25" 240hz 1080p
ZtecPC X170SM-G Prema | SL 10900k | Nvidia RTX 2080 Super (Currently DOA) | Corsair 3800 @ 3200 14-14-14 | 17.3" 1080p 144hz

Boxx X170KM-G | 11900k | Nvidia RTX 3070 | Corsair 3200 64GB (2x32GB) | Samsung 980 Pro 1TB | 17.3" 1080p 144hz

MSI GL66 Pulse | i7-12700h | RTX 3070 | 512GB | 16GB | 15.6" 144hz 1080 IPS ** Acer Nitro 5 | i5-10300H | RTX 3050 | 16GB | 256GB | 15.6" 144hz  1080p IPS


Link to comment
Share on other sites

Been using Cooler Master NotePal U2 and U3 for years. I like the simplicity and lightweight design, usually take U2 with me when I travel. It also has adjustable fans by default, which is nice, and a big potential for possible customizations/upgrades. Haven't done any measurements though, and with stock fans it probably doesn't do much in any case, apart from elevating the laptop a bit from the surface.

There was a thread on NBR about modding the U3 PLUS version (link to archive.org if anyone's interested). Plan to do something similar myself soon.

  • Thumb Up 1

Serenity                    -> Dell Precision 7560
Millenium Falcon    -> Dell Precision 5530
Axiom                        -> Lenovo ThinkPad P52 (work)
Moldy Crow             -> Dell XPS 15 9550

Spoiler

Millenium Falcon: Dell Precision 5530
    i9-8950HK CPU
    2x16 GB DDR4 2,666 MHz
    1 TB SSD
    NVIDIA Quadro P2000
    UHD 3840 x 2160
    Ubuntu 20.04 / Windows 10 LTSC

Axiom: Lenovo ThinkPad P52
    i7-8850H
    2x32 GB DDR4
    1 TB SSD
    NVIDIA Quadro P2000
    UHD 3840x2160
    Windows 10 Pro



Link to comment
Share on other sites

The best cooling pad is a custom cooling pad.

2x Arctic P14 with voltage booster @ 13.6v


Drops temps by an additional 10C compared to just lifting up the back of the laptop.

  • Thumb Up 4
MSI GS75 Stealth 9SG (LM)
Core i7-9750H (bypassed power limit)
CB R15: 1324 || CB R20: 3244
16GB x2 DDR4 3200 CL18 (OC) Samsung C-die
RTX 2080 Max-q (Shunt modded)
Firestrike graphics: 26321 || Timespy graphics: 10 264 || Port Royal: 5944
Samsung PM981 512GB x2 Raid-0 + 1TB WD Blue M.2 SSD
Link to comment
Share on other sites

On 2/7/2022 at 11:13 PM, Katja said:

I've been using this dingaling for a few days and it seems to keep temps moderated under load and reduce fan noise on top of it; no complaints.

Also, like two minutes ago, I just found out this thing has a freaking phone stand. Well, that'll be useful for Twitch. I'm actually amused.

I got that one for christmas lol however with the X170KM i can't use the mobile holder lol.

Only using it for benchmarking right now though so its back in box, still waiting on my new metal Laptop cooler but my friend is busy right now so not bothering him.

  • Thumb Up 1

{Main Laptop:} PCS Recoil 17.3" (Clevo X170KM-G)

Spoiler

{CPU:} Intel i7 11700K

{RAM:} 2x 16GB DDR4 3200MT/s

{GPU:} Nvidia RTX 3070 Mobile
{Screen:} BOE NE173QHM-NY2 165hz 1440p

{Storage:} WD M.2 SATA 2TB (Data/ShadowPlay/UserProfile), WD SN770 in 500GB (OS), 1TB(Firmware/Drivers/Junk( and 2TB (Games_ sizes

{OS:} Windows 11 Pro

Benchmarks:

{TimeSpy}: Normal Extreme  {Firestrike}: Normal Extreme {Port Royle}Result

Realtek Nahimic 3 Modded Driver for MSI Systems: Latest


Link to comment
Share on other sites

I use the Thermaltake Massive 20 RGB cooler for my m18x r2. Personally i find the fans to do little in aiding temps so i resorted to putting 4 self adhesive rubber doorstops on each corner upside down to act as standoffs for the m18x.

heres a link for them: https://www.amazon.co.uk/Adhesive-Furniture-Slamming-Stainless-Dampening/dp/B07FZJJ7YG?pd_rd_w=iHfuu&pf_rd_p=b877196e-affe-4d6f-8520-cd98dbb83300&pf_rd_r=62QFTJ1WRH8CW8DSVTFN&pd_rd_r=fb1d64aa-402d-4c42-aa43-160fe92873a3&pd_rd_wg=ndibK&pd_rd_i=B07FZJJ7YG&psc=1&ref_=pd_bap_d_rp_1_i

the laptop cooler: https://www.amazon.co.uk/Thermaltake-CL-N014-PL20SW-Massive-Notebook-Cooler/dp/B077974X66/ref=sr_1_3?crid=3T0I1HWMN1F0Z&keywords=thermaltake+massive+20+rgb+notebook+cooler&qid=1644628991&sprefix=thermaltake+massiv%2Caps%2C108&sr=8-3

and the end result:





IMG_9081 profile.jpg

Edited by Azther
added link for cooler
  • Thumb Up 2

Alienware M18X R2 | Nebula Red | i7 3740QM [OC'd to 4Ghz] | 32GB RAM | NVIDIA Quadro P4000 | 75hz OC'd Display |

MXM to NVMe Adapter with Samsung 970 Evo Plus 2TB

Alienware 17 R4 | i7 6700HQ | 16GB RAM | GTX 1070 | 100hz OC'd LG 1080p Display

Alienware M18X R1 | Space Black | i7 2960XM | 16GB RAM | GTX 780M


Link to comment
Share on other sites

It kinda depends on the size of the laptop, where the cooler's fans are, and where the laptop fans are. On most laptops, I foresee little to no improvement with these coolers. The best that could happen is the coolers that lift the laptop up can aid in expelling heat up and away from the laptop. Other than that, unless a fan is close or directly under a vent where it can help, not much would happen.



Thinkpad T430 - i7 3630QM, 16GB RAM, Intel HD 4000, 1080p display mod

Elitebook 8770W - i5 3320M (Temporary), 16GB RAM, GTX 980m (broken)

Main PC - AMD Ryzen 9 5950X, 64GB RAM, RTX 2080 Ti

Link to comment
Share on other sites

Personally I find that the best laptop cooling pads you can buy are cooling pads with 2x140mm fans. Then, just remove the mesh which blocks 80% of the airflow and you'll start seeing a more significant temperature improvement.

MSI GS75 Stealth 9SG (LM)
Core i7-9750H (bypassed power limit)
CB R15: 1324 || CB R20: 3244
16GB x2 DDR4 3200 CL18 (OC) Samsung C-die
RTX 2080 Max-q (Shunt modded)
Firestrike graphics: 26321 || Timespy graphics: 10 264 || Port Royal: 5944
Samsung PM981 512GB x2 Raid-0 + 1TB WD Blue M.2 SSD
Link to comment
Share on other sites

I have a few of these that I got for cheap used and in certain situations they do work well.  But only if the fan is cranked to 100%.



I think the better thing is to understand where the air intake and exhaust are on your laptop and use a small fan to direct air there.  Most of the time this is underneath, but I notice that on my HPs, there is a good amount of air being sucked in via the keyboard on the left hand side, so keeping the lid open (or at least open a crack) is important.

  • Thumb Up 1
Link to comment
Share on other sites

I use simple 3D printed plastic stands to raise the laptop about 2" off the desk. Almost free, no noise, incredibly small and light, prints in 2-3 hours. I was given an Amazon generic laptop stand with fans and RGB, etc but honestly it's loud, gaudy, and intriduces more clutter to my desk. The 3D printed stands are invisible under the laptop.


  • Thumb Up 2

PowerSpec 1720 (PB70EF-G) | i7-8750H | 32GB 3000MHz DDR4 | RTX 2070 8GB 115W | 144Hz G-SYNC

Spoiler

-192 mV core & cache | 15-18-18-36 1T @ 1.35V | 1860MHz @ .875mV & 1950MHz GDDR6
Disabled: TVB, VMX Stress, RDB, HDC
Tuned with: ThrottleStop, MSi Afterburner | TIM: SYY 157


Insyde H2OUVE BIOS Unlock | CB R20 - 3172 | CB R23 - 8164/1105 | CPU Prof. Max - 4702

Link to comment
Share on other sites

11 hours ago, User said:

I use simple 3D printed plastic stands to raise the laptop about 2" off the desk. Almost free, no noise, incredibly small and light, prints in 2-3 hours. I was given an Amazon generic laptop stand with fans and RGB, etc but honestly it's loud, gaudy, and intriduces more clutter to my desk. The 3D printed stands are invisible under the laptop.


I'd be afraid of the laptop sliding off with that setup. Assuming that doesn't happen, it looks like it might slide around the table

MSI GS75 Stealth 9SG (LM)
Core i7-9750H (bypassed power limit)
CB R15: 1324 || CB R20: 3244
16GB x2 DDR4 3200 CL18 (OC) Samsung C-die
RTX 2080 Max-q (Shunt modded)
Firestrike graphics: 26321 || Timespy graphics: 10 264 || Port Royal: 5944
Samsung PM981 512GB x2 Raid-0 + 1TB WD Blue M.2 SSD
Link to comment
Share on other sites

1 hour ago, seanwee said:

I'd be afraid of the laptop sliding off with that setup. Assuming that doesn't happen, it looks like it might slide around the table

Looks like it needs rubber shoes

Alienware M18x R2 i7-3920xm-16GB DDR3-Quadro P4000  Alienware M17x R4 i7-3940XM 16GB DDR3-1866 Quadro P4000

Precision m6700 i7-3840QM - 16.0GB DDR3 - GTX 970M     Alienware M17x R4 i7-3940XM 32GB DDR3-1600 GTX 680M 120hz 3D
Precision m4700 i7-3610QM-8.00GB DDR3 @ 1600MHz-K2000M

GOBOXX SLM  G2721-i7-10875H RTX 3000-32GB ddr4(Gave to my Wife)



Link to comment
Share on other sites

Been on these stands about a year. That picture is a generic from Thingiverse, my Clevo laptop has rubber feet that stop it from sliding.

  • Thumb Up 1

PowerSpec 1720 (PB70EF-G) | i7-8750H | 32GB 3000MHz DDR4 | RTX 2070 8GB 115W | 144Hz G-SYNC

Spoiler

-192 mV core & cache | 15-18-18-36 1T @ 1.35V | 1860MHz @ .875mV & 1950MHz GDDR6
Disabled: TVB, VMX Stress, RDB, HDC
Tuned with: ThrottleStop, MSi Afterburner | TIM: SYY 157


Insyde H2OUVE BIOS Unlock | CB R20 - 3172 | CB R23 - 8164/1105 | CPU Prof. Max - 4702

Link to comment
Share on other sites

For on the go rear laptop elevation I keep a set of these in my bag:



https://smile.amazon.com/gp/product/B08FDDWHMF/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

Electrosoft Prime: 12900k | Asus Z690 Strix D4 | MSI Suprim X Liquid 4090 | AC LF II 420mm AIO | G.Skill 4133 2x16GB B-Die G1 | Samsung 980 1TB | EVGA 1600w P2 | Phanteks Ethroo Pro | LG 49" 144hz IPS
Heath: i3-12100f | Asrock B660M Pro RS | Intel A770 LE  | 32GB Klex 3600mhz  | WD Black SN850 512GB |  EVGA DG-77 | HP ZR30w 30" 2560x1600 IPS

MelMel: i5-12500 | Asus Prime B660 | Asrock Intel A380 | 16GB G.Skill 3600mhz |  512GB M.2 | Gamdias | Dell 25" 240hz 1080p
ZtecPC X170SM-G Prema | SL 10900k | Nvidia RTX 2080 Super (Currently DOA) | Corsair 3800 @ 3200 14-14-14 | 17.3" 1080p 144hz

Boxx X170KM-G | 11900k | Nvidia RTX 3070 | Corsair 3200 64GB (2x32GB) | Samsung 980 Pro 1TB | 17.3" 1080p 144hz

MSI GL66 Pulse | i7-12700h | RTX 3070 | 512GB | 16GB | 15.6" 144hz 1080 IPS ** Acer Nitro 5 | i5-10300H | RTX 3050 | 16GB | 256GB | 15.6" 144hz  1080p IPS


Link to comment
Share on other sites

  • 2 weeks later...

I've tried several cooling pads with my Alienware M17R4. The one I've stuck with is the KLIM Wind (4, quiet, adjustable speed fans). The 2 rear fans of the pad, line up with bottom intake fans of my laptop. I only notice a few degrees improvement in cooling, but the laptops fans seem to run less often, and at a slower RPM.

Link to comment
Share on other sites

I've been tempted in the past to buy this .. thing 🤣 that claims to cool down your lappy beyond recognition with its dual blowers and hermetically sealed chamber of absolute freezing madness. The reviews seem positive enough though. but what concerns me is some kind of myth? or misinformation? around this kind of cooler that uses blowers instead of a regular fan, and that supposed problem would be damaging your laptop's own fans because of spinning way too fast beyond the intended max speed due to the volume and pressure of air inside that sealed chamber (4500 rpms at max speed from those blowers according to the manufacturer)



any thoughts?



https://www.amazon.com/IETS-Cooling-Flexible-Colorful-Adjustable/dp/B07WVK2ZZ9




Link to comment
Share on other sites

I was using Cooler Master NotePal U3 PLUS for several years

https://www.amazon.com/gp/product/B00ED3WMTC/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1



Recently changed to



Thermaltake Massive 20 RGB Steel Mesh Panel Single 200mm Fan 10"‐19" Laptop Notebook Cooling Pad CL‐N014‐PL20SW‐A

https://www.amazon.com/gp/product/B077974X66/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1

  • Thumb Up 1

MSI GE76 Intel i7 12700H, RTX 3070Ti, 17.3" FHD, 32GB RAM, 1TB NVME, 4TB SSD, 4TB HDD

CLEVO P775TM1-G Intel i7 8700K (Delidded), GTX 1080 MXM, 17.3" FHD G-Sync, 32GB RAM, 3TB NVME

MSI GF65 Intel i5 10500H, RTX 3060, 15.6" FHD, 16GB RAM, 1TB NVME

ASUS ROG G701VI Intel i7 6700HQ, GTX 1080, 17.3" FHD G-Sync, 32GB RAM, 2TB NVME

Link to comment
Share on other sites

On 3/4/2022 at 4:26 AM, duskw4lker said:

I've been tempted in the past to buy this .. thing 🤣 that claims to cool down your lappy beyond recognition with its dual blowers and hermetically sealed chamber of absolute freezing madness. The reviews seem positive enough though. but what concerns me is some kind of myth? or misinformation? around this kind of cooler that uses blowers instead of a regular fan, and that supposed problem would be damaging your laptop's own fans because of spinning way too fast beyond the intended max speed due to the volume and pressure of air inside that sealed chamber (4500 rpms at max speed from those blowers according to the manufacturer)



Damn that thing looks super futuristic, would probably look very cool along with something like Alienware M18x R2.



As for damaging the laptop's fans, I'm not sure how that would happen. Most laptops have a thin mesh covering the air intake slots on the bottom, and hence the air that is blown into the them will dissipate quite a lot.

Also, looking at the video, the air does not go straight up like it would from a fan, but rather it blows more or less parallel to the laptop then starts curling up around the middle.



Spoiler









  • Bump 1

Serenity                    -> Dell Precision 7560
Millenium Falcon    -> Dell Precision 5530
Axiom                        -> Lenovo ThinkPad P52 (work)
Moldy Crow             -> Dell XPS 15 9550

Spoiler

Millenium Falcon: Dell Precision 5530
    i9-8950HK CPU
    2x16 GB DDR4 2,666 MHz
    1 TB SSD
    NVIDIA Quadro P2000
    UHD 3840 x 2160
    Ubuntu 20.04 / Windows 10 LTSC

Axiom: Lenovo ThinkPad P52
    i7-8850H
    2x32 GB DDR4
    1 TB SSD
    NVIDIA Quadro P2000
    UHD 3840x2160
    Windows 10 Pro



Link to comment
Share on other sites

1 hour ago, serpro69 said:



Damn that thing looks super futuristic, would probably look very cool along with something like Alienware M18x R2.



As for damaging the laptop's fans, I'm not sure how that would happen. Most laptops have a thin mesh covering the air intake slots on the bottom, and hence the air that is blown into the them will dissipate quite a lot.

Also, looking at the video, the air does not go straight up like it would from a fan, but rather it blows more or less parallel to the laptop then starts curling up around the middle.







I. must. not. spend. more. money 😵.



You make an interesting point, the mesh that is commonly placed at the intake should dissipate some of the pressure, and yes, the air is not being blown directly hmm... 🤔

Link to comment
Share on other sites



On 3/4/2022 at 11:26 AM, duskw4lker said:

I've been tempted in the past to buy this .. thing 🤣 that claims to cool down your lappy beyond recognition with its dual blowers and hermetically sealed chamber of absolute freezing madness. The reviews seem positive enough though. but what concerns me is some kind of myth? or misinformation? around this kind of cooler that uses blowers instead of a regular fan, and that supposed problem would be damaging your laptop's own fans because of spinning way too fast beyond the intended max speed due to the volume and pressure of air inside that sealed chamber (4500 rpms at max speed from those blowers according to the manufacturer)



any thoughts?



https://www.amazon.com/IETS-Cooling-Flexible-Colorful-Adjustable/dp/B07WVK2ZZ9






A member of the MSI Enthusiasts discord I manage just bought this for his GF65. He figured it would be the best option for the GF65 since that laptop doesnt have any direct fan intakes and so a sealed cooling pad like this would be helpful in forcing air through the laptop.



When it arrived and tested it however, the temperatures were 3C worse than not using a cooling pad. He said that the fans ran slow and was barely pushing any air through. In fact, it was restricting the amount of fresh air the laptop could intake due to its sealed design.



Basically, avoid this cooling pad at all costs

9 hours ago, serpro69 said:



Damn that thing looks super futuristic, would probably look very cool along with something like Alienware M18x R2.



As for damaging the laptop's fans, I'm not sure how that would happen. Most laptops have a thin mesh covering the air intake slots on the bottom, and hence the air that is blown into the them will dissipate quite a lot.

Also, looking at the video, the air does not go straight up like it would from a fan, but rather it blows more or less parallel to the laptop then starts curling up around the middle.



  Hide contents









Even with my custom cooling pad forcing tons of air into the laptop intakes, I have not observed any "damage" to the fans. In fact, the fans run quieter than before since they no longer have the high pitched whooshing sound from air being sucked into the laptop as air is already being blown into the laptop.

  • Thumb Up 1
  • Thanks 1
  • Like 1
MSI GS75 Stealth 9SG (LM)
Core i7-9750H (bypassed power limit)
CB R15: 1324 || CB R20: 3244
16GB x2 DDR4 3200 CL18 (OC) Samsung C-die
RTX 2080 Max-q (Shunt modded)
Firestrike graphics: 26321 || Timespy graphics: 10 264 || Port Royal: 5944
Samsung PM981 512GB x2 Raid-0 + 1TB WD Blue M.2 SSD
Link to comment
Share on other sites

11 hours ago, RyleyI said:

I just decided to try it out, it arrives Wednesday.

Looking forward to a review   !?!?! :classic_biggrin:

  • Bump 1

Thunderchild // Lenovo Legion Y740 17" i7-9750H rtx2080maxQ win10

Rainbird // Alienware 17 (Ranger) i7-4910mq gtx980m win10

Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
 Share

×
×
  • Create New...

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue. Terms of Use
