Dell Precision 7670 & Dell Precision 7770 owner's thread


Recommended Posts

33 minutes ago, MyPC8MyBrain said:



Nice! I guess the next question is if Nvidia will be patching this work around in the next driver release.



It sounds like it may be similar to what MSI does with Overboost and Tongfang with their TDP unlocks. It may also be something related to Nvidia allowing higher TDP on the desktop 4090 card too.

  • Thumb Up 1

Desktop - 12900KS, 32GB DDR5-6400 C32, 2TB WD SN850, Windows 10 Pro 22H2

Clevo X170SM - 10900K, 32GB DDR4-2933 CL17, 4TB WD SN850X, RTX 3080 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Clevo X370SNW - 13900HX, 32GB DDR5-5600 CL40, 4TB Samsung 990 Pro, RTX 4090 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Lenovo Thinkpad P16 G2 - 13950HX, 64GB DDR5-4000 CL32, 2TB Kioxia SSD, RTX 4090 mobile 130W, 16 inch FHD+ 60hz, Windows 10 Pro 22H2

MSI Raider 18 A7V - 7945HX3D, 32GB DDR5-5200, 1TB PM9A1, RTX 4090 mobile 175W, 18 inch QHD+ 240hz, Windows 10 Pro 22H2

Precision 7670 - 12950HX, 32GB DDR5-4800 CAMM, 1TB SSD, RTX 3080Ti mobile 100W, 16 inch WUXGA 60hz, Windows 10 Pro 22H2

Link to comment
Share on other sites

40 minutes ago, win32asmguy said:

I guess the next question is if Nvidia will be patching this work around in the next driver release

is that a dell or nvidia driver implementation?

i plan to try and track the driver itself, maybe there's an inf instruction or something we can edit ourselves,

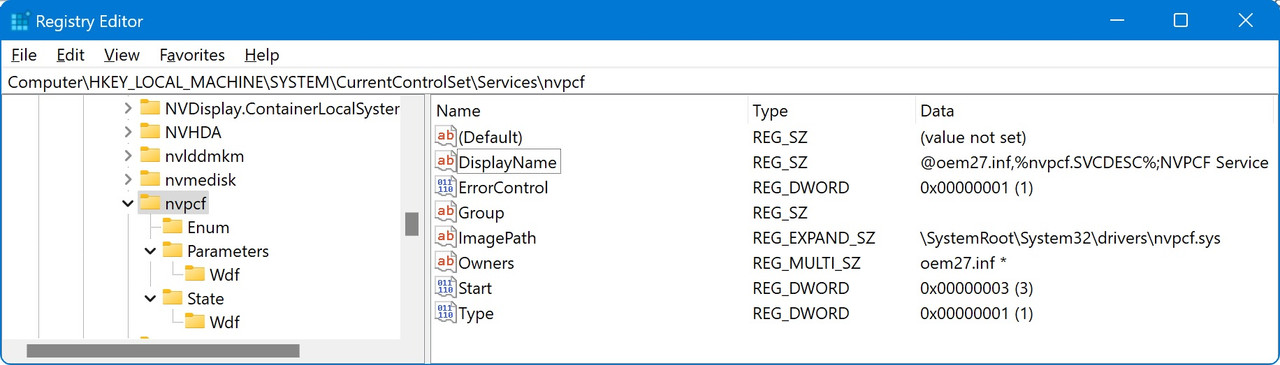

Computer\HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\nvpcf




the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

setting above reg key "start" value to 4 achieves the same result without disabling in device manager

(seem to be some NVidia telemetry  service),

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\nvpcf]
"Start"=dword:00000004



to make sure it stays off one can also edit "C:\Windows\INF\oem27.inf" line 49

"StartType      = 3" to "StartType      = 4"




the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

9 hours ago, MyPC8MyBrain said:

is that a dell or nvidia driver implementation?

i plan to try and track the driver itself, maybe there's an inf instruction or something we can edit ourselves,



I think it is power limits supplied by Dell within Nvidia's range for the product. The driver is supposed to enforce those limits via the PCF component.



I think this driver also has other bugs (noticed some artifacting even at stock clocks) so I reverted back to the Dell provided drivers for now as I do not want to damage the GPU.

  • Thanks 1

Desktop - 12900KS, 32GB DDR5-6400 C32, 2TB WD SN850, Windows 10 Pro 22H2

Clevo X170SM - 10900K, 32GB DDR4-2933 CL17, 4TB WD SN850X, RTX 3080 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Clevo X370SNW - 13900HX, 32GB DDR5-5600 CL40, 4TB Samsung 990 Pro, RTX 4090 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Lenovo Thinkpad P16 G2 - 13950HX, 64GB DDR5-4000 CL32, 2TB Kioxia SSD, RTX 4090 mobile 130W, 16 inch FHD+ 60hz, Windows 10 Pro 22H2

MSI Raider 18 A7V - 7945HX3D, 32GB DDR5-5200, 1TB PM9A1, RTX 4090 mobile 175W, 18 inch QHD+ 240hz, Windows 10 Pro 22H2

Precision 7670 - 12950HX, 32GB DDR5-4800 CAMM, 1TB SSD, RTX 3080Ti mobile 100W, 16 inch WUXGA 60hz, Windows 10 Pro 22H2

Link to comment
Share on other sites

what sort of artifact did you see? (in a way you want to see artifacts to find your threshold to back off from)
few frames flickering is not a big deal i have seen that happen when i push memory clock speeds too far,
+1400Mhz is the upper limit here before i start to see some artifacts with higher memory clocks,

maybe the artifacts coming from the +138% power limit increase side?
here i can only push to plus +130% max as the slider stops after,





for the record, power supply during bench is pegged at 240w for the entire duration of the bench,
sometime it spiked slightly over 240w which tells me the 330w brick is now needed to exceed these limits safely and remain stable (running with 100% stock Dell paste still),



a small tidbit i noticed MSI native OC feature (top left corner) works fully when NPCF is disabled,



below is my best score thus far (i feel no need to further prove my machine),
needless to say this is staying for good here with me https://www.3dmark.com/spy/34146281




the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites



5 hours ago, win32asmguy said:

The driver is supposed to enforce those limits via the PCF component

a longshot but viable... it is possible that wherever CPU-Z is reading its 115w limit value,
Nvidia PCF is also reading that value for threshold instead of the 150 value set in NVidia system info,

(despite my efforts i was unable to trace that illusive 115.0 W TDP (TGP) value source)






the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

48 minutes ago, MyPC8MyBrain said:

a longshot but viable... it is possible that wherever CPU-Z is reading its 115w limit value,
Nvidia PCF is also reading that value for threshold instead of the 150 value set in NVidia system info,

(despite my efforts i was unable to trace that illusive 115.0 W TDP (TGP) value source)



Before I reverted the 527.56 driver on the 7670 I checked that value and it was 90W. So it definitely represents Base TGP. GPU-Z also has the same value I have found:




  • Thumb Up 1

Desktop - 12900KS, 32GB DDR5-6400 C32, 2TB WD SN850, Windows 10 Pro 22H2

Clevo X170SM - 10900K, 32GB DDR4-2933 CL17, 4TB WD SN850X, RTX 3080 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Clevo X370SNW - 13900HX, 32GB DDR5-5600 CL40, 4TB Samsung 990 Pro, RTX 4090 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Lenovo Thinkpad P16 G2 - 13950HX, 64GB DDR5-4000 CL32, 2TB Kioxia SSD, RTX 4090 mobile 130W, 16 inch FHD+ 60hz, Windows 10 Pro 22H2

MSI Raider 18 A7V - 7945HX3D, 32GB DDR5-5200, 1TB PM9A1, RTX 4090 mobile 175W, 18 inch QHD+ 240hz, Windows 10 Pro 22H2

Precision 7670 - 12950HX, 32GB DDR5-4800 CAMM, 1TB SSD, RTX 3080Ti mobile 100W, 16 inch WUXGA 60hz, Windows 10 Pro 22H2

Link to comment
Share on other sites

my gpu-z advance tab is showing a bunch of weird stats (prob because i am on hybrid mode)
but it also exposes a reg path with corresponding files in "C:\Windows\INF" only oem1.inf and oem35.inf are NVidia's,






Computer\HKEY_LOCAL_MACHINE\SYSTEM\ControlSet001\Control\Class\{4d36e968-e325-11ce-bfc1-08002be10318}\0000

the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

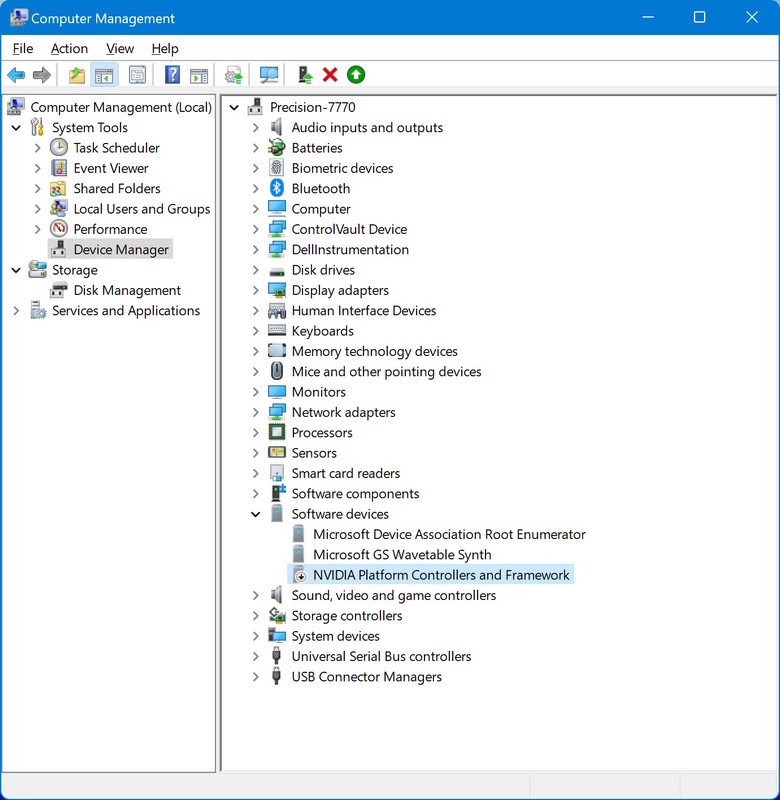

paste this little script in a batch file to easily cycle "NVIDIA Platform Controllers and Framework" ON/OFF

mode con: cols=40 lines=4
@echo off
powershell -Command Get-PnpDevice "ACPI\NVDA0820\NPCF" | findstr /i "error" >nul && (powershell -Command pnputil /enable-device "ACPI\NVDA0820\NPCF" & echo ** NPCF Enabled **)
if %errorlevel% equ 1 (powershell -Command pnputil /disable-device "ACPI\NVDA0820\NPCF" & echo -= NPCF Disabled =-)
TIMEOUT 3 > nul

:: in case of DeviceId error or to use with a diffrent device, query for DeviceId with example below
:: Get-PnpDevice -FriendlyName "*Friendly Name Goes Here*" | ft -Wrap -AutoSize Instanceid



  • Thanks 1

the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

18 hours ago, MyPC8MyBrain said:

what sort of artifact did you see? (in a way you want to see artifacts to find your threshold to back off from)
few frames flickering is not a big deal i have seen that happen when i push memory clock speeds too far,
+1400Mhz is the upper limit here before i start to see some artifacts with higher memory clocks,

maybe the artifacts coming from the +138% power limit increase side?
here i can only push to plus +130% max as the slider stops after,



The artifact was a random box area would flicker periodically in games, even at default clocks and 90W TDP. On another machine with a 3080Ti I noticed checkerboard patterns which persisted to the desktop even after exiting the game, which did not go away until a reboot.



On the 7670, 90W x 138% = 125W vbios cap, hence why the slider goes farther.

Desktop - 12900KS, 32GB DDR5-6400 C32, 2TB WD SN850, Windows 10 Pro 22H2

Clevo X170SM - 10900K, 32GB DDR4-2933 CL17, 4TB WD SN850X, RTX 3080 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Clevo X370SNW - 13900HX, 32GB DDR5-5600 CL40, 4TB Samsung 990 Pro, RTX 4090 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Lenovo Thinkpad P16 G2 - 13950HX, 64GB DDR5-4000 CL32, 2TB Kioxia SSD, RTX 4090 mobile 130W, 16 inch FHD+ 60hz, Windows 10 Pro 22H2

MSI Raider 18 A7V - 7945HX3D, 32GB DDR5-5200, 1TB PM9A1, RTX 4090 mobile 175W, 18 inch QHD+ 240hz, Windows 10 Pro 22H2

Precision 7670 - 12950HX, 32GB DDR5-4800 CAMM, 1TB SSD, RTX 3080Ti mobile 100W, 16 inch WUXGA 60hz, Windows 10 Pro 22H2

Link to comment
Share on other sites

1 hour ago, win32asmguy said:

The artifact was a random box area would flicker periodically in games

was the flickering white patches in random areas of the screen?
try to logon to ms-dos or a low level screen color stage like repair (hod shift when you click restart) and boot to safe mode option 6, reason for the above is to try and observe these flickering happen outside windows as low color level will induce these, during boot time it is also possible to observe these flickers, if you are able to observe them outside the game or windows it is likely not a driver issue but a hardware one, I had similar issue with one of my recent exchange units.

the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

I have also hit hardcore flickering/artifacting when running with graphics switching off which did persist after a reboot / into BIOS setup screens.  This was with nothing going on to "artificially" push the GPU harder.  I have a video of it that I took with my phone.  I will likely warranty this eventually but for now I am just running with graphics switching on (not causing me any trouble).

Apple MacBook Pro 16-inch, 2023 (personal) • Dell Precision 7560 (work) • Full specs in spoiler block below
Info posts (Windows) — Turbo boost toggle • The problem with Windows 11 • About Windows 10/11 LTSC

Spoiler

Apple MacBook Pro 16-inch, 2023 (personal)

  • M2 Max
    • 4 efficiency cores
    • 8 performance cores
    • 38-core Apple GPU
  • 96GB LPDDR5-6400
  • 8TB SSD
  • macOS 15 "Sequoia"
  • 16.2" 3456×2234 120 Hz mini-LED ProMotion display
  • Wi-Fi 6E + Bluetooth 5.3
  • 99.6Wh battery
  • 1080p webcam
  • Fingerprint reader

Also — iPhone 12 Pro 512GB, Apple Watch Series 8



Dell Precision 7560 (work)

  • Intel Xeon W-11955M ("Tiger Lake")
    • 8×2.6 GHz base, 5.0 GHz turbo, hyperthreading ("Willow Cove")
  • 64GB DDR4-3200 ECC
  • NVIDIA RTX A2000 4GB
  • Storage:
    • 512GB system drive (Micron 2300)
    • 4TB additional storage (Sabrent Rocket Q4)
  • Windows 10 Enterprise LTSC 2021
  • 15.6" 3940×2160 IPS display
  • Intel Wi-Fi AX210 (Wi-Fi 6E + Bluetooth 5.3)
  • 95Wh battery
  • 720p IR webcam
  • Fingerprint reader



Previous

  • Dell Precision 7770, 7530, 7510, M4800, M6700
  • Dell Latitude E6520
  • Dell Inspiron 1720, 5150
  • Dell Latitude CPi
Link to comment
Share on other sites

49 minutes ago, MyPC8MyBrain said:

was the flickering white patches in random areas of the screen?
try to logon to ms-dos or a low level screen color stage like repair (hod shift when you click restart) and boot to safe mode option 6, reason for the above is to try and observe these flickering happen outside windows as low color level will induce these, during boot time it is also possible to observe these flickers, if you are able to observe them outside the game or windows it is likely not a driver issue but a hardware one, I had similar issue with one of my recent exchange units.



I will run it through an ePSA diagnostic test in dedicated mode to see if it occurs. I think in dedicated mode it was always artifacting regardless of driver loaded from Dell or Nvidia.



I also noticed the 7670 memory is the 14gbps type instead of 16gbps. Probably does not matter at 125W but interesting to note. I wonder if the gddr6 could be an inferior bin or it's just the same chips at a lower speed.

Desktop - 12900KS, 32GB DDR5-6400 C32, 2TB WD SN850, Windows 10 Pro 22H2

Clevo X170SM - 10900K, 32GB DDR4-2933 CL17, 4TB WD SN850X, RTX 3080 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Clevo X370SNW - 13900HX, 32GB DDR5-5600 CL40, 4TB Samsung 990 Pro, RTX 4090 mobile, 17.3 inch FHD 144hz, System76 open source firmware, Windows 10 Pro 22H2

Lenovo Thinkpad P16 G2 - 13950HX, 64GB DDR5-4000 CL32, 2TB Kioxia SSD, RTX 4090 mobile 130W, 16 inch FHD+ 60hz, Windows 10 Pro 22H2

MSI Raider 18 A7V - 7945HX3D, 32GB DDR5-5200, 1TB PM9A1, RTX 4090 mobile 175W, 18 inch QHD+ 240hz, Windows 10 Pro 22H2

Precision 7670 - 12950HX, 32GB DDR5-4800 CAMM, 1TB SSD, RTX 3080Ti mobile 100W, 16 inch WUXGA 60hz, Windows 10 Pro 22H2

Link to comment
Share on other sites

1 hour ago, win32asmguy said:

I will run it through an ePSA diagnostic test

i believe the diagnostics test is over a white background, that will make it hard to spot white flickering that's why i suggested to find a low res mode like safe mode where its black and little to no drivers involved until late in the load, the goal is to spot it outside of windows to rule out any driver involvement,



in my case out of the box on first boot It was noticeable, it wasn't bad or persistent but occasionally small random small rectangular sections flickered quickly no matter if I was in windows or booting or in safe mode, that was a replacement for the first 7770 unit which got immediately replaced to the unit i have now, 3 rounds of 7770 replacements before finally I got a unit that was behaving "relatively" nice without displaying any major issues out of the box (for the record all 7770 units arrived with bios 1.6.3),

the impossible is not impossible, its just haven't been done yet.

Link to comment
Share on other sites

Hey Guys, I ordered an heatsink replacement and it got delivered. It is the Sunon Fan. I want to put it on but I also repasted with Liquid Metal and it works just fine (22000 on cinebench single run) so I want to wait for a while at least until the Liquid Metal dry up. However, dell says I have to send the defect part back in 10 days. I was wandering if anyone have encountered this before? Are there any consequences if I don’t return back. Thank you!

Link to comment
Share on other sites

The method with disabling nvidia platform does not seem to work for an RTX A4500. The power limit slider in afterburner is still greyed out / locked. 😞



In GPU-Z I have a similar entry when it comes to power limit, and it also shows as adjustable -99% and +39%. So it should somehow be possible?

Link to comment
Share on other sites

6 hours ago, Jack said:

I was wandering if anyone have encountered this before? Are there any consequences if I don’t return back. Thank you!



This is normal for warranty claims, they generally want to have the defective part back.  You could potentially be charged for it if you do not return it.  (I've never actually heard of anyone wanting to hang onto it for an extended period of time.....)

Apple MacBook Pro 16-inch, 2023 (personal) • Dell Precision 7560 (work) • Full specs in spoiler block below
Info posts (Windows) — Turbo boost toggle • The problem with Windows 11 • About Windows 10/11 LTSC

Spoiler

Apple MacBook Pro 16-inch, 2023 (personal)

  • M2 Max
    • 4 efficiency cores
    • 8 performance cores
    • 38-core Apple GPU
  • 96GB LPDDR5-6400
  • 8TB SSD
  • macOS 15 "Sequoia"
  • 16.2" 3456×2234 120 Hz mini-LED ProMotion display
  • Wi-Fi 6E + Bluetooth 5.3
  • 99.6Wh battery
  • 1080p webcam
  • Fingerprint reader

Also — iPhone 12 Pro 512GB, Apple Watch Series 8



Dell Precision 7560 (work)

  • Intel Xeon W-11955M ("Tiger Lake")
    • 8×2.6 GHz base, 5.0 GHz turbo, hyperthreading ("Willow Cove")
  • 64GB DDR4-3200 ECC
  • NVIDIA RTX A2000 4GB
  • Storage:
    • 512GB system drive (Micron 2300)
    • 4TB additional storage (Sabrent Rocket Q4)
  • Windows 10 Enterprise LTSC 2021
  • 15.6" 3940×2160 IPS display
  • Intel Wi-Fi AX210 (Wi-Fi 6E + Bluetooth 5.3)
  • 95Wh battery
  • 720p IR webcam
  • Fingerprint reader



Previous

  • Dell Precision 7770, 7530, 7510, M4800, M6700
  • Dell Latitude E6520
  • Dell Inspiron 1720, 5150
  • Dell Latitude CPi
Link to comment
Share on other sites

2 hours ago, jorgeregula said:

The method with disabling nvidia platform does not seem to work for an RTX A4500. The power limit slider in afterburner is still greyed out / locked. 😞



In GPU-Z I have a similar entry when it comes to power limit, and it also shows as adjustable -99% and +39%. So it should somehow be possible?



You should be able to make the adjustment after installing 527.56.



For some reason the drivers for the professional cards do not allow for that adjustment but it should not be an issue to install the one for the regular cards and then you will be good to go to get full 3070 Ti / A4500 performance.

  • Thumb Up 1
Link to comment
Share on other sites

Great work with pushing the GPU power limit higher.  I added a note about this procedure in the OP.

  • Thumb Up 2

Apple MacBook Pro 16-inch, 2023 (personal) • Dell Precision 7560 (work) • Full specs in spoiler block below
Info posts (Windows) — Turbo boost toggle • The problem with Windows 11 • About Windows 10/11 LTSC

Spoiler

Apple MacBook Pro 16-inch, 2023 (personal)

  • M2 Max
    • 4 efficiency cores
    • 8 performance cores
    • 38-core Apple GPU
  • 96GB LPDDR5-6400
  • 8TB SSD
  • macOS 15 "Sequoia"
  • 16.2" 3456×2234 120 Hz mini-LED ProMotion display
  • Wi-Fi 6E + Bluetooth 5.3
  • 99.6Wh battery
  • 1080p webcam
  • Fingerprint reader

Also — iPhone 12 Pro 512GB, Apple Watch Series 8



Dell Precision 7560 (work)

  • Intel Xeon W-11955M ("Tiger Lake")
    • 8×2.6 GHz base, 5.0 GHz turbo, hyperthreading ("Willow Cove")
  • 64GB DDR4-3200 ECC
  • NVIDIA RTX A2000 4GB
  • Storage:
    • 512GB system drive (Micron 2300)
    • 4TB additional storage (Sabrent Rocket Q4)
  • Windows 10 Enterprise LTSC 2021
  • 15.6" 3940×2160 IPS display
  • Intel Wi-Fi AX210 (Wi-Fi 6E + Bluetooth 5.3)
  • 95Wh battery
  • 720p IR webcam
  • Fingerprint reader



Previous

  • Dell Precision 7770, 7530, 7510, M4800, M6700
  • Dell Latitude E6520
  • Dell Inspiron 1720, 5150
  • Dell Latitude CPi
Link to comment
Share on other sites

After installing the geforce drivers instead of professional drivers the power limit indeed unlocks.



Setting it to +39% gives 125W GPU power usage instead of 102W on an RTX A4500.



Ran an extra 3dmark run, graphics score went from 9700 to 10800, so that's great. However, now the CPU score has dropped from 13800 to 10500, and it seems to be thermally limiting. I guess my only options are undervolting / limiting boost to avoid this?



Total system power usage shows as 235W.

Link to comment
Share on other sites

10 minutes ago, jorgeregula said:

Ran an extra 3dmark run, graphics score went from 9700 to 10800, so that's great. However, now the CPU score has dropped from 13800 to 10500, and it seems to be thermally limiting.



Not surprised that pushing the graphics power level higher also restricts the CPU a bit.  (...This is quite possibly why Dell put the GPU power limit where they did.)  At least you have the option to give more power priority to the GPU when you need to run a more GPU-heavy workload.



Undervolting will help out some with CPU performance, but I'd say that would be the case even if you weren't messing with the GPU power levels.

Apple MacBook Pro 16-inch, 2023 (personal) • Dell Precision 7560 (work) • Full specs in spoiler block below
Info posts (Windows) — Turbo boost toggle • The problem with Windows 11 • About Windows 10/11 LTSC

Spoiler

Apple MacBook Pro 16-inch, 2023 (personal)

  • M2 Max
    • 4 efficiency cores
    • 8 performance cores
    • 38-core Apple GPU
  • 96GB LPDDR5-6400
  • 8TB SSD
  • macOS 15 "Sequoia"
  • 16.2" 3456×2234 120 Hz mini-LED ProMotion display
  • Wi-Fi 6E + Bluetooth 5.3
  • 99.6Wh battery
  • 1080p webcam
  • Fingerprint reader

Also — iPhone 12 Pro 512GB, Apple Watch Series 8



Dell Precision 7560 (work)

  • Intel Xeon W-11955M ("Tiger Lake")
    • 8×2.6 GHz base, 5.0 GHz turbo, hyperthreading ("Willow Cove")
  • 64GB DDR4-3200 ECC
  • NVIDIA RTX A2000 4GB
  • Storage:
    • 512GB system drive (Micron 2300)
    • 4TB additional storage (Sabrent Rocket Q4)
  • Windows 10 Enterprise LTSC 2021
  • 15.6" 3940×2160 IPS display
  • Intel Wi-Fi AX210 (Wi-Fi 6E + Bluetooth 5.3)
  • 95Wh battery
  • 720p IR webcam
  • Fingerprint reader



Previous

  • Dell Precision 7770, 7530, 7510, M4800, M6700
  • Dell Latitude E6520
  • Dell Inspiron 1720, 5150
  • Dell Latitude CPi
Link to comment
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
×
×
  • Create New...

Important Information

We have placed cookies on your device to help make this website better. You can adjust your cookie settings, otherwise we'll assume you're okay to continue. Terms of Use
